Heritage Curved “Ladies Waist” Aluminium Balustrade

DIY Cut-To-Size Balustrade Kits
Designed for Queenslander homes, verandahs, decks, stairways and balconies.

SMS Your Sizes For A Fast Quote

How To Get Fast Prices

• SMS your sizes to 0414 237 573
• Provide the width and height of each individual panel
• Do not provide the full overall frontage width
• Choose your gap size: 16mm, 40mm or 80mm

Example:

• Panel 1 = 2200mm W x 950mm H
• Panel 2 = 1850mm W x 950mm H
• Panel 3 = 2100mm W x 950mm H

Example Pricing

A typical 2000mm wide x 1200mm high vertical slat balustrade with 40mm gaps in Satin Black would be approximately:

Pickup from Narangba, QLD or Australia-wide shipping available.

Colours We Stock

Heritage Rail, Bracket & Post Colours:

• Gloss White
• Satin Black
• Monument / Dark Grey
• Paperbark Cream

100x16mm Vertical Slat Colours:

• Gloss White
• Satin Black
• Monument / Dark Grey
• Shale Grey
• Paperbark Cream
• Merbau Timber-Look
• Red Cedar Timber-Look
• Deep Ocean Blue

Specifications

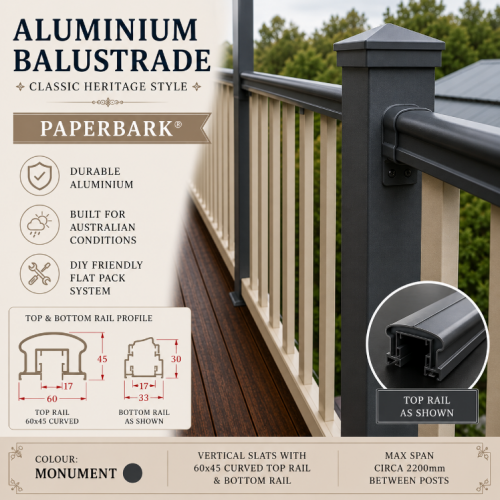

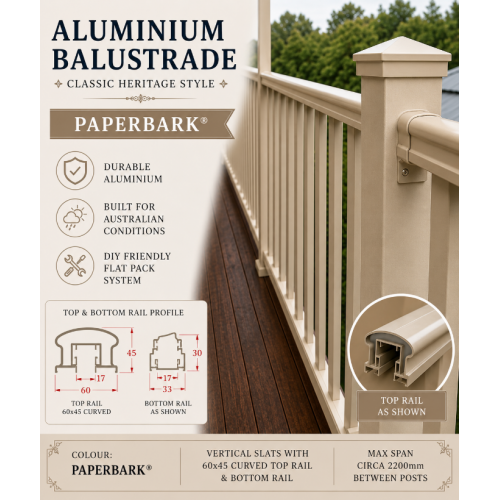

• Top Rail: 60mm wide x 45mm high Heritage curved profile
• Bottom Rail: 33mm wide x 30mm high matching bottom rail
• Recommended Max Span: circa 2200mm between posts
• Centre Support Leg: supplied on panels wider than 1700mm

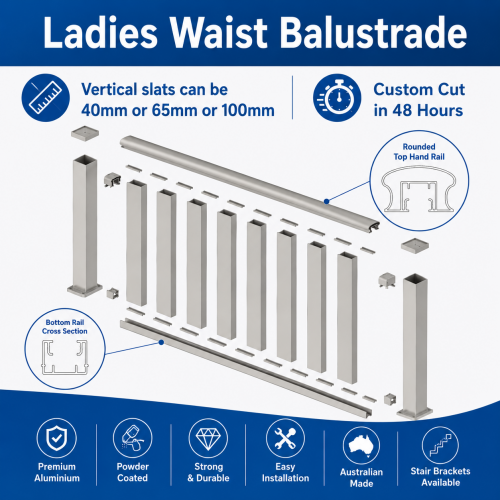

• System: concealed slot-together design with no visible screws through slats
• Brackets: can conceal up to approx. 40mm of post alignment variation
• Stair Brackets: swivel stair brackets available

Slat Options

Standard vertical slats are 100x16mm.

Optional upgrade slats are available in 65x16mm and 40x16mm in selected colours including Gloss White, Satin Black and Monument.

Post Options

These balustrades can be installed between aluminium posts, timber posts, steel posts or other suitable structures.

Matching 76x76mm powder-coated aluminium posts are available at approximately $40 per lineal metre.

Concrete post base plates are approximately $35 each.

Matching Gates Available

We also manufacture matching gates using the Heritage Curved “Ladies Waist” design. Simply send your gate width and height for pricing.

Why Customers Love This System

• Traditional Queenslander heritage styling
• Concealed fixing design
• Powder-coated aluminium construction
• No rusting and no painting required
• Custom cut to size
• DIY-friendly flat-pack system
• Internal ribbed slats for strength
• Spacer inserts supplied for common gap sizes

Stairs & Raked Panels

We supply swivel angle brackets for stair balustrades, raked balustrades and sloping installations.

We do not cut angled panels at the factory. Order an oversized rectangular panel and trim the angle yourself during installation. Cut edges are concealed inside the rail profiles and brackets.

Simple DIY Installation

1. Fix bottom rail brackets to the inside faces of your posts
2. Install the bottom rail
3. Insert the first spacer
4. Insert the first slat
5. Continue alternating spacers and slats
6. Position the top rail over the slats
7. Secure the top rail brackets
8. Insert the remaining top rail spacers

Important Order Information

• $100 deposit required for custom local pickup orders
• Most orders are cut within 48 hours
• Orders are wrapped and dispatched approximately 1–2 business days after cutting
• Protective film is left on the material for transport
• Please allow approximately 3–6mm manufacturing tolerance
• Gap sizes refer to the space between slats only

Slat and gap spacing may not divide evenly into every panel width. If this happens, the first and last gaps may vary slightly.

Australia-Wide Shipping

• Single panel or gate wrapping and shipping from $120
• Brisbane Northside from $140
• Brisbane Southside from $200
• Gold Coast, Ipswich or Sunshine Coast from $250
• Sydney or Rockhampton from $350
• Melbourne or Townsville from $450

For all other locations, send your suburb and postcode and we can quote freight.

SMS 0414 237 573 For A Fast Quote
